GPUVault:
Retrofit-Friendly,
Constrained-Space
Cooling
A compact form factor brings GPU-ready performance and asset protection to environments that previously lacked the mechanical infrastructure for AI workloads.
GPUVault repositions the air-handler from the top of the rack into a dedicated center cabinet. The form factor combines two compute cabinets plus one air-handler, preserving full rack containment benefits while reducing ceiling heigh requirements – ideal for retrofits and space-constrained deployments.
Key Features

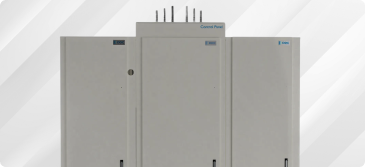

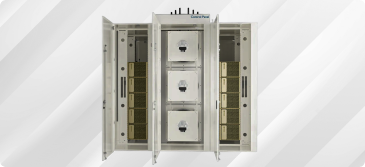

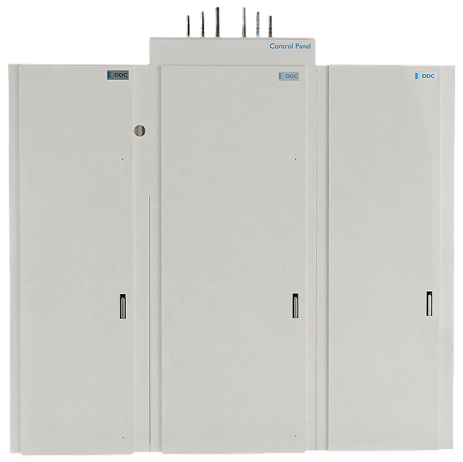

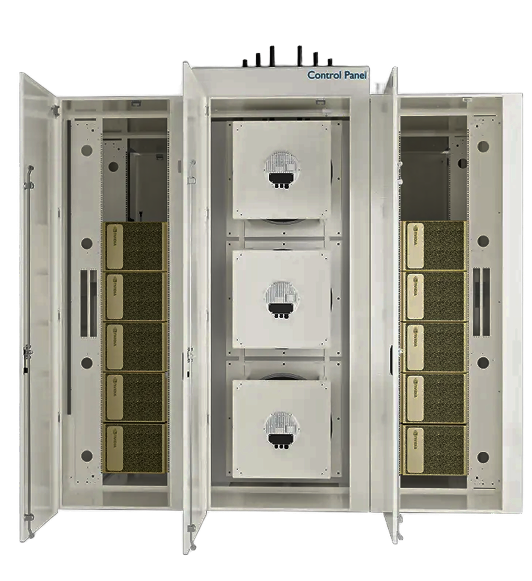

Compact form factor: two compute cabinets plus one air-handler cabinet
High-density air-side cooling with optional liquid-to-chip integration
Lower ceiling height requirements for legacy sites

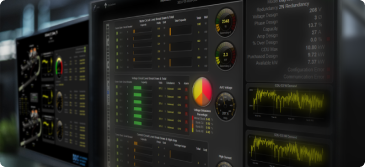

Telemetry-ready and compatible with DDC monitoring/DCIM
Adjacent water loop to compute (not overhead) for risk mitigation
Modular design enables rapid roll-in deployment
PRODUCT HIGHLIGHTS
GPUVault Specs
| Heat Abatement | 200kW (100kW Each Side) |
| Rack Width | 36" and 42" |
| Rack Units | 52U |
| Full Unit Dimensions (36") | 100" H x 110" W x 104" D |
| Full Unit Dimensions (42") | 100"H x 122" W x 104" D |
| Liquid-to-Chip Provisioning | Optional |
| NEMA Design | NEMA 3R |
Deployment Scenarios
Legacy data centers with lower ceiling heights
Rapid deployments requiring minimal construction
Security-sensitive environments seeking reduced water exposure above compute
Use Cases
Retrofit projects where traditional
top-mounted air-handlers won’t fit
Roll-in installs that minimize
downtime and floor disruption
Security & Risk Mitigation
Adjacent water loop design reduces exposure above compute
Rack-level containment limits incident impact and thermal spread
Telemetry and alarms for early detection and response
FAQs
Why is GPU Vault ideal for retrofits?
The 3×2 design lowers ceiling requirements and avoids water above compute.
Can GPU Vault support Rubin-ready deployments?
Yes. 42-inch compute cabinets support next-gen GPUs.
How is water managed?
The primary loop feeds the center air-handler; compute racks have no water overhead.
What densities are supported?
Up to 100 kW air-side and 400 kW liquid-to-chip per rack.
Is telemetry included?
GPU Vault is telemetry-ready and integrates with DDC monitoring/DCIM.
